Equipment introduction:

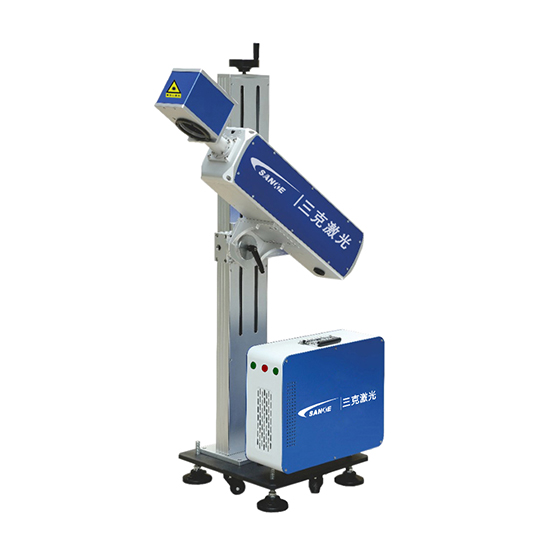

The CO2 laser marking machine uses a CO2 RF laser and a high-speed scanning galvanometer system. The whole machine system has high marking precision, high speed and stable performance, and can work continuously. It can be directly applied to large-scale online processing flow production line.
Features:
◆ Fully enclosed maintenance-free laser optical system, no need to adjust, ready to use.
◆ High-precision, high-speed marking performance with clear marking.
◆ With WINDOWS interface, it can be compatible with files exported by various software such as CORELDRAW, AUTOCAD, PHOTOSHOP. Support PLT, AI, DXF, BMP and other documents, directly use SHX, TTF fonts, support automatic coding, serial number, batch number, date, barcode and QR code marking.
Applicable materials:
Suitable for most non-metallic materials, such as glass, paper, organic materials, acrylic, plastic, epoxy resin, etc.
Application industry:
Electronic components, medicine, various food, beverage packaging, craft gifts and other industries.
| Product Name | Items | Brand | QTY | Remark |
| CO2 Laser Marking Machine | Frame Structure | 3K Laser | 1 Set | as Fig |
| Laser Generator | Coherent、Synrad、China（Option） | 1 Set | ||
| Galvanometer | China or Import(Option） | 1 Set | ||
| Software and Control Card | Static or Dynamic | 1 Set | ||
| PC | Industrial Computer | 1 Set | ||
| Display screen | LED | 1 Set |
| Performance/Model | SK-C10 | SK-C30 | SK-C60 | SK-C100 |
| Laser Power | 10W | 30W | 60W | 100W |
| Wavelength | 10600nm | 10600nm | 10600nm | 10600nm |
| Min line width | 0.1mm | 0.1mm | 0.1mm | 0.1mm |
| Repeatability Precision | ±0.003mm | ±0.003mm | ±0.003mm | ±0.003mm |
| Beam Quality | ≤1.2 | ≤1.2 | ≤1.2 | ≤1.2 |
| Min Character | 0.2mm | 0.2mm | 0.2mm | 0.2mm |
| Marking Area | 110*110/200*200/400*400mm(Option) | 110*110/200*200/400*400mm(Option) | 110*110/200*200/400*400mm(Option) | 110*110/200*200/400*400mm(Option) |
| Marking Speed | ≤7000mm/s | ≤7000mm/s | ≤7000mm/s | ≤7000mm/s |
| Cooling System | Air | Air | Air | Water |
| Voltage | 220V±10%/50Hz/5A | 220V±10%/50Hz/5A | 220V±10%/50Hz/5A | 220V±10%/50Hz/5A |
